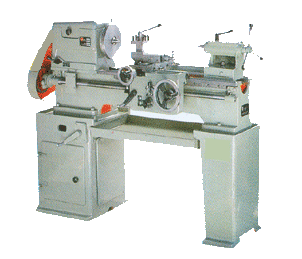

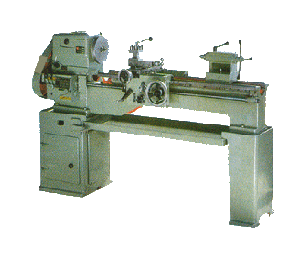

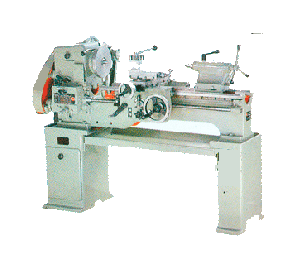

Metal Cutting & Workshop MachinePrecision Center Lathe
 |
 |
 |
 |
| Model No: 2 & 2 GL | Model No: 2G | Model No: 5 | Model No: 6 |
SPECIFICATION IN MM |
||||||
MODEL |
2 | 2GL | 2G | 5 | 6 | |
Length of BED |
1370 | 1370 | 1370 | 1370 | 1820 | |
WIDTH OF BED |
228.6 | 228.6 | 228.6 | 241.3 | 241.3 | |
HEIGHT OF CENTER |
155 | 155 | 155 | 162 | 162 | |
SWING OVER BED |
305 | 305 | 305 | 320 | 320 | |
SWING OVER CARRIAGE |
155 | 155 | 155 | 160 | 160 | |
SWING AND WIDTH |
- | 490 | 490 | - | 500 | |
IN GAP |
- | 145 | 145 | - | 150 | |
ADMIT BETWEEN CENTERS |
730 | 730 | 725 | 605 | 1070 | |
HEAD STOCK
|
||||||
SPINDLE DRIVE |
V-BELT | V-BELT | V-BELT | DOUBLE V-BELT | DOUBLE V-BELT | |
SPINDLE BEARINGS FRONT |
TYPE | TR BRG | TR BRG | TR BRG | TR BRG
SRB BRG |
TR BRG
SRB BRG |
SPINDLE BEARING REAR |
TYPE | TR BRG | TR BRG | TR BRG | TR BRG | TR BRG |
SPINDLE NOSE (SCREW TYPE)SIZE |
NCH/TPI | 2.35-8 | 2.35-8 | 2.35-8 | 2.35-8 | 2.35-8 |
SPINDLE BORE DIAMETER |
40 | 40 | 40 | 35 | 35 | |
TAPER BORE IN SPINDLE NOSE |
STD | MORSE 5 | MORSE 5 | MORSE 5 | MORSE 5 | MORSE 5 |
SPINDLE SPEEDS |
NOS. | 8 | 8 | 8 | 6 | 6 |
RANGE |
RPM | 20-740 | 20-740 | 20-740 | 40-680 | 40-680 |
TAIL STOCK
|
||||||
INTERNAL TAPER IN QUILL |
STD | MORSE 3 | MORSE 3 | MORSE 3 | MORSE 3 | MORSE 3 |
TOTAL TRAVEL OF QUILL |
115 | 115 | 115 | 115 | 115 | |
TAIL STOCK SET-OVER |
8 | 8 | 8 | 8 | 8 | |
TOP SLIDE
|
||||||
TOP SLIDE SWIVELLING DEGREE |
45-0-45 | 45-0-45 | 45-0-45 | 45-0-45 | 45-0-45 | |
TOTAL TRAVEL OF TOP SLIDE |
115 | 115 | 115 | 115 | 115 | |
MAXIMUM TOOL SHANK SECTION |
20 | 20 | 20 | 25 | 25 | |
AUTO FEED
|
||||||
TRANSVEERSE |
MM/ | 0.009- | 0.009- | 0.009- |
0.009- | 0.009- |
(CROSS-SLIDE) |
REV | 1.497 | 1.497 | 1.497 |
1.497 | 1.497 |
LONGITUDINAL |
MM/ | 0.046- | 0.046- | 0.046- | 0.046- | 0.046- |
(CARRIAGE) |
REV | 7.526 | 7.526 | 7.526 | 7.526 | 7.526 |
MANUAL FEED
|
||||||
TRANSVERSE |
MM/DIV | 0.0508 | 0.0508 | 0.0508 | 0.0508 | 0.0508 |
LONGITUDINAL |
MM/DIV | 0.255 | 0.255 | 0.255 | 0.255 | 0.255 |
TOP SLIDE |
MM/DIV | 0.0254 | 0.0254 | 0.0254 | 0.0254 | 0.0254 |
TAIL STOCK QUILL |
MM/REV | 3.175 | 3.175 | 3.175 | 3.175 | 3.175 |
ELECTRICAL
|
||||||
LEAD SEREW DIAMETER AND THREAD |
MM-TPI | 25.4-6 | 25.4-6 | 25.4-6 | 25.4-6 | 25.4-6 |
THREAD CUTTING METRIC PITCH |
NOS-MM | 15/0.5-6 | 15/0.5-6 | 15/0.5-6 | 15/0.5-6 | 15/0.5-6 |
THREAD CUTTING ENGLISH |
NOS-TPI | 30/4-45 | 30/4-45 | 30/4-45 | 30/4-45 | 30/4-45 |
DRIVE
|
||||||
COUNTER DRIVE SYSTEM |
UPCN | UPCN | BSCN | UNCN | UNCN | |
ELECTRIC POWER REQUIRED |
H P | 1 | 1 | 1 | 1.5 | 2 |
GENERAL
|
||||||
SPACE OCCUPIED FLOOR |
1580 X 820 | 1500 X 820 | 1580 X 920 | 1550 X 660 | 2010 X 660 | |
CASE SIZE |
L | 1675 | 1675 | 1675 | 1675 | 2135 |
| W | 735 | 735 | 735 | 785 | 785 | |
| H | 1285 | 1285 | 1285 | 1355 | 1435 | |
NET WEIGHT OF MACHINE |
KG | 365 | 365 | 390 | 510 | 615 |
