Drill MachinesPillar Drill

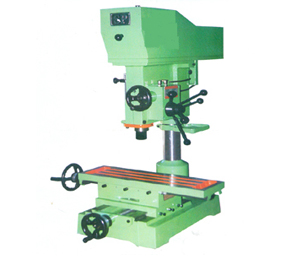

Model No: S.P. 20 - 1 / 25 - 2 - 32 - 3 / 40 -4	Model No: S.P. 35 - A - M.D.

MODEL	S.P.20-1	S.P.25-2	S.P.32-3	S.P.40-4	S.P.35-5A	S.P.40-6A	S.P.35-A-M.D.
Drilling Capacity in mild Steel	20	25	32	40	35	40	35
No. of Spindle Speed	80 to 3300	105 to 2651	80 to 2600	80 to 1975	80 to 2600	50 to 1225	80 to 2600
	4 + 4 = 8	4 + 4 = 8	4 + 4 = 8	4 + 4 = 8	4 + 4 = 8	3 + 3 =6	4 + 4 = 8
No. of Auto Feed	-	-	-	-	0.05	0.05 .10 .15	.05
Spindle Center to Column	200	206	260	316	260	385	260
Max Travel of Spindle	125	150	160	250	250	250	250
Max Distance Spindle Nose to table	838	710	810	685	740	685	450
Max Distance Spindle Nose to Base	750	950	1120	1065	1150	1117	-
Spindle Nose Bore	M.T.2	M.T.3	M.T.3	M.T.4	M.T.4	M.T.4	M.T.4
Diameter of Table	265X265	336	381	545	381	450 X 610	228 X 765
Base area Machined	430X280	225X250	350X390	450X600	350X390	700X977	475X700
Diameter of Column	74	90	108	130	108	150	108
Total Height of the Machine	1345	1606	1778	1814	1778	2130	1600
H.P. of the Motor	0.5	1	1.5	2	1.5	2	1.5
RPM	1440	1440	1440	1440	1440	1440	1440
Vee Belt	B 35	B 46	B 55	C 70	B 55	B.80 2, Nos.	D 55
Swing	-	-	-	-	-	-	405
End Mill Cap	-	-	-	-	-	-	20
Net Weight	110Kgs.	190Kgs.	280Kgs.	550Kgs.	350Kgs.	690Kgs.	450Kgs.
